Boiler tubes

Hot rolled stainless steel boiler pipes

Inquiry

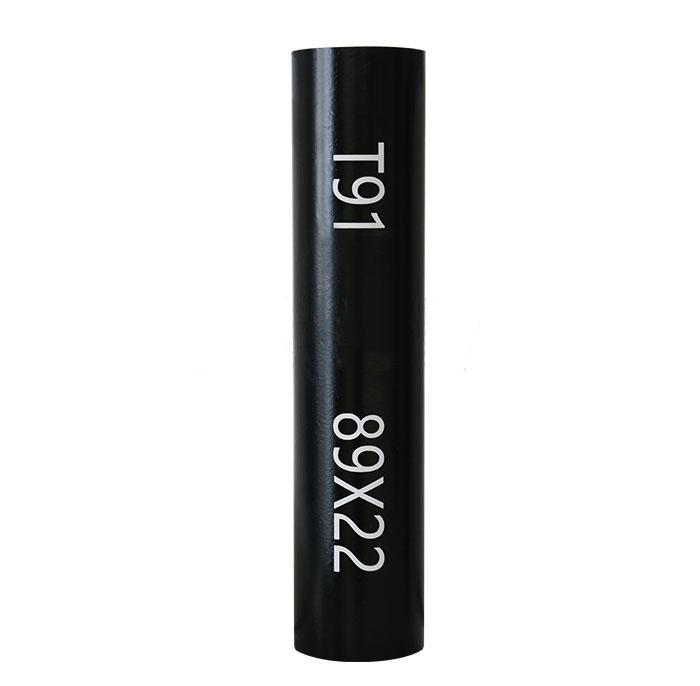

We can supply more than 20 varieties of high, medium and low pressure boiler tubes and high alloy boiler tubes, and successfully rolled T91, SUP304H, and internally threaded boiler tubes.

  • Low and medium pressure boiler tubes:

Implement GB3087 standard. Used for heating surface tubes of low and medium pressure boilers (with a working pressure generally not exceeding 5.88Mpa and a working temperature below 450 ℃).

  • High pressure boiler tubes:

Implement relevant standards such as GB3087, GB5310, DIN17175, ASME SA-106, ASME SA-210M, ASME SA-213M, ASME SA-335M, etc. Used for heating surface tubes, economizers, superheaters, reheaters, petrochemical industry tubes, etc. of high-pressure boilers (working pressure generally above 9.8Mpa, working temperature between 450 ℃ and 650 ℃).

  • Nuclear power pipes:

Implement GB5310, ASTM A106, and ASTM A335 standards. Used for conventional main steam pipelines and main feedwater pipelines.

Tubes

Spec.

Steel grade

Standard

Typical application

Outer diameter(mm)

Wall thickness(mm)

Low and medium pressure boiler tubes

48-711

5.0-65

20#

GB3087

Low and medium pressure boiler header, steam pipeline.

























High-pressure boiler tube

























48-720

























4.0-58

20G



Used for water-cooled walls, superheaters, reheaters, and economizers, currently capable of producing high-end products such as T91, P91, Super304H, etc; Large diameter high-pressure boiler tubes are used for header and connecting pipelines; Alumina project dissolution pipeline; Red mud conveying pipeline.

15MoG



20MnG



15CrMoG



12Cr1MoVG



St35.8

GB5310

SA106B



SA106C

DIN17175

SA210A

SA210C



T2

ASME SA-106

P2



T11

ASME SA-210

P11

T12

ASME SA-213

P12

T22



P22

ASME SA-335

P36

aa

T91



P91



T23



WB36



T/P9



12Cr2MoG



T/P92





Nuclear tube



48-711



4.0-65



20控Cr、A335P22、WB36CN1



On Agreement

Used for heat exchangers, steam converters, and cooling water pipelines.

Remarks: Specific requirements can be designed and produced according to client’s needs.
