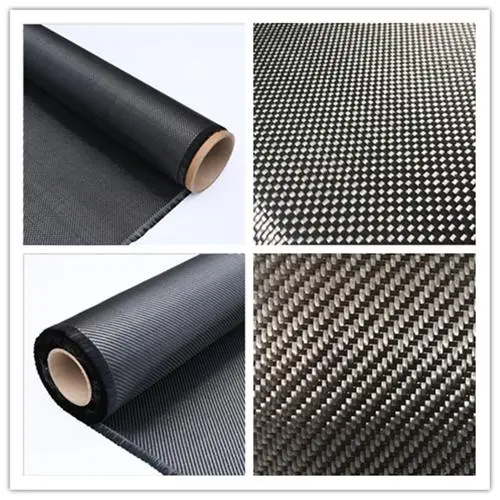

Carbon fiber fabric
Properties:
Compact and well-balanced fiber with good flexibility.
Easy to shape, fast wet-out, good interlayer structure.
Light weight, high strength, high modulus, low expansion coefficient and good thermal conductivity.
- Applicable process：Hand lay-up, Mould pressing, Vacuum Diversion and Coating.
- Compatible resin：Unsaturated polyester resin, Vinyl ester resin, Epoxy resin
Specifications:
Product code |
Weave |
Fiber Type | Density (Filament No.s/10mm) |
Areal Weight (g/m²) | ||||
|
| Warp |
Weft | Warp |
Weft |
Width | Thickness mm |
|
W-1011 | plain | CF 1K | CF 1K | 9.10 | 9.10 | 1000 | 0.16 | 125 |
W-1021 | twill 2/2 |
CF 1K |
CF 1K |
9.10 |
9.10 |
1000 |
0.16 |
125 |
W-3011 | plain | CF 3K | CF 3K | 4.92 | 4.92 | 1000 | 0.25 | 198 |
W-3021 | twill 2/2 |
CF 3K |
CF 3K |
4.92 |
4.92 |
1000 |
0.25 |
198 |
W-7011 | plain | CF 12K | CF 12K | 4.00 | 4.00 | 1000 | 0.64 | 640 |
W-7021 | twill 2/2 |
CF 12K |
CF 12K |
4.00 |
4.00 |
1000 |
0.64 |
640 |
W-9311 | plain | GF 300tex | GF 300tex | 4.92 | 4.92 | 1000 | 0.27 | 295 |
W-9321 | twill 2/2 |
GF 300tex |
GF 300tex |
4.92 |
4.92 |
1000 |
0.27 |
295 |
W-8021 | twill 2/2 | aramid 167tex | aramid 167tex |
5.00 |
5.00 |
1000 |
0.21 |
170 |
W-3911 | plain |
CF 3K |
GF 300tex |
4.92 |
4.92 |
1000 |
0.27 |
250 |
W-39311 |
plain |
CF 3K |
CF 3K |
2.46 |
2.46 |
1000 |
0.27 |
250 |
|
|
GF 300tex |
GF 300tex |
2.46 |
2.46 |
|
|
|
3911-3 | plain |
CF 3K |
GF 34tex |
8±0.3 |
6.7±0.2 |
1000-1010 |
0.22±0.02 |
183±5% |
3911-5 | plain |
CF 3K |
GF 34tex | 7.5±0.3 | 4.5±0.2 |
1000-1010 | 0.19±0.02 | 165±5% |
| Product Code | Unit weight | Fiber type | Structure | Density | Width | Thickness | |
| Warp | Weft | ||||||
| CP120 | （120±2%）g/m2 | 1 K | 1 K | Plain | （9.0×9.0）line/cm | 1000 mm | 0.15 mm |
| CT120 | （120±2%）g/m2 | 1 K | 1 K | Twill | （9.0×9.0）line/cm | 1000 mm | 0.15 mm |
| CP320 | （320±3%）g/m2 | 6 K | 6 K | Plain | （4.0×4.0）line/cm | 1000 mm | 0.36 mm |
| CT320 | （320±3%）g/m2 | 6 K | 6 K | Twill | （4.0×4.0）line/cm | 1000 mm | 0.36 mm |
| CT400 | （400±3%）g/m2 | 6 K | 6 K | Twill | （5.0×5.0）line/cm | 1000 mm | 0.42 mm |
| CP480 | （480±3%）g/m2 | 12 K | 12 K | Plain | （3.0×3.0）line/cm | 1000 mm | 0.52 mm |
| Remarks: | |||||||
C-Carbon fiber、G-Glass fiber、P-plain、T-twill. Fabric type, fiber areal weight & width can be custom-made. | |||||||
Application:
Widely used in medical, sports & military equipment, aircraft & automotive modification parts, electronic product casings, blade, yacht, etc.
